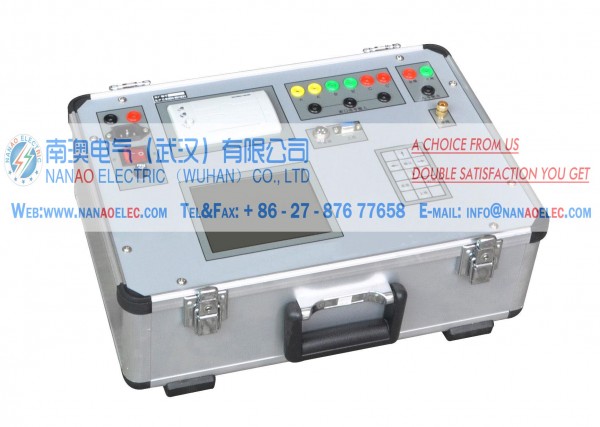

南澳電氣NAGK-H高壓開關動特性測試儀是南澳電氣公司為適應測試高壓開關動作特性的需要開發研制的專用儀器。它以單處機為核心進行采樣，處理和輸出。主要特點是采用英文和漢字提示以人機對話的方式操作，中英文顯示結果并打印輸出，具有智能化、功能多、數據準確、抗干擾性強、操作簡單、體積小、重量輕、外觀美等優點，適用

 南澳電氣（武漢）有限公司（簡稱“南澳電氣”)，是國電網武漢高壓研究所改制后成立的高電壓輸變電檢測設備的高新骨干企業，主要從事電力儀器儀表、交直流分壓器、互感器類測試設備、高壓耐壓設備、峰值電壓表、超聲局放定位系統、工頻信號發生器、沖擊電壓電流發生器 、變壓器類試驗設備、繼電保護測試儀、SF6及開關類檢測設備、局部放電超聲檢測系統、避雷器測試設備、環境人工氣候模擬實驗裝置、電能表校驗設備、蓄電池檢測儀等產品的研發。

南澳電氣NAGK-H高壓開關動特性測試儀是南澳電氣公司為適應測試高壓開關動作特性的需要開發研制的專用儀器。它以單處機為核心進行采樣，處理和輸出。南澳電氣NAGK-H高壓開關動特性測試儀主要特點是采用英文和漢字提示以人機對話的方式操作，中英文顯示結果并打印輸出，具有智能化、功能多、數據準確、抗干擾性強、操作簡單、體積小、重量輕、外觀美等優點，適用于各種戶內、戶外少油、多油開關、真空開關、六氟化硫開關的動特性測試。

南澳電氣NAGK-H高壓開關動特性測試儀產品別名

高壓開關機械特性測試儀，開關機械特性測試儀，高壓開關綜合測試儀，斷路器動特性測試儀，斷路器機械特性測試儀，斷路器綜合測試儀，高壓開關時間特性測試儀，高壓開關特性測試儀，開關特性測試儀，斷路器測試儀，開關機械特性測試儀，開關參數測試儀

南澳電氣NAGK-H高壓開關動特性測試儀產品特性

1、有12個斷口的固有分、合閘時間

2、重合閘時間

3、分、合閘zui大不同期性

4、剛分、剛合速度

5、彈跳時間及幅度

6、開關開距及開關超行程(真空開關預置開關行程)

7、分、合閘平均速度

8、顯示、打印速度—距離曲線



Product introduction

NAGK-H high-voltage switch dynamic characteristics tester (without power supply) is a newly researched and developed special instruments, adapt the needs of high-voltage switching operation characteristics developed. With the single machine as core to sample, to process and output. NAGK-H high-voltage switch dynamic characteristics tester mainly adopted English&Chinese characters tips to man-machine dialogue operation, character display and print out the results, with intelligent, multi-function, accurate data, strong anti-jamming, simple operation, small in size, light in weight, beautiful appearance, etc., Suitable for a variety of indoor & outdoor, less oil & more oil switches, vacuum switches, sulfur hexafluoride switch dynamic characteristics testing.

Also called name

High voltage mechanical characteristics tester, switch mechanical characteristics tester, high voltage switch integrated tester, breaker dynamic characteristics tester, breakers mechanical characteristics tester, breaker integrated tester, high voltage switching time characteristics tester, high voltage switching characteristics tester, switching characteristics tester, breaker tester, switch mechanical characteristics tester, switch parameter tester

The Characteristics of the products

1, NAGK-H high-voltage switch dynamic characteristics tester with 12 fractures, with fixed open and close time fracture

2, Reclosing time

3, Opening, closing at maximum different period

4, Speed of just opening, just closing

5, Bouncing timing and magnitude

6, Distance of open and close, overtravel of open and close, (vacuum switch preset switch stroke)

7, Opening, closing average speed

8, Speed of display and print - distance curve

The parameters of the products

1,Time measurement

Time measurement range: 10ms-1000ms

simultaneously measure the number of fracture: ≤ 12

measurements at the whole process of setting time: 0 ~ 6 s

Resolution: 0.1ms

2,switch of open & close distance and overtravel, bounce amplitude measurement

range: <500mm

Resolution: 1mm

3,measurement error

time measurement error: ± 1%

stroke measurement error: ± 1%

4,Operating Conditions

Operating Voltage: AC220V ± 10%

Frequency: 50HZ

Power Consumption: ≤ 60W

Usage temperature: 0 ~ 40 ℃

Operating Humidity: ≤ 90% RH

Dimension: 400 × 350 × 200 (mm3)

Weight: 7kg
