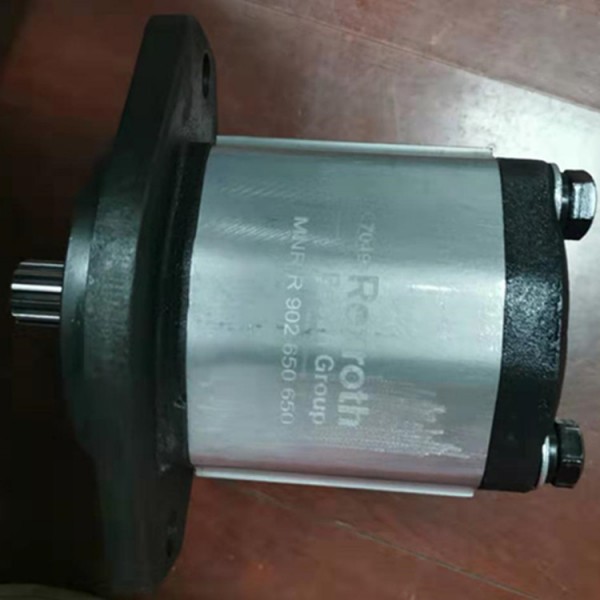

Rexroth力士樂齒輪泵AZPF系列

◆公稱壓力280bar

◆采用滑動軸承，適合重負荷應用

◆可以實現多臺泵的組合

◆管路油口：采用連接法蘭或內螺紋

◆通過大規模生產，實現持續的高質量

◆可提供多種配置變型

無泄漏齒輪泵無泄漏齒輪泵

力士樂齒輪泵AZPF/0510系列詳情介紹

力士樂齒輪泵AZPF系列，是一款外嚙合定量齒輪泵，排量有4-28cmm3/rev，可單泵使用，也可以和泵系列或其他系列齒輪泵、柱塞泵組合使用。這就決定了規格型號數量大，適用范圍也非常廣。

力士樂齒輪泵AZPF組成固件有：固定環、軸密封圈、前蓋、滑動軸承、定心銷、齒輪、齒輪 (摩擦)、泵殼密封件、泵殼、軸承、軸向區域密封件、支架、端蓋、固定螺釘。

AZPF/0510系列特性
1、公稱壓力 280 bar；
2、采用滑動軸承，適合重負荷應用；
3、可以實現多臺泵的組合；
4、管路油口：采用連接法蘭或內螺紋；
5、通過大規模生產，實現持續的高質量；
6、可提供多種配置變型。

AZPF/0510系列工作原理

力士樂齒輪泵AZPF系列，主要由軸承襯套上支承的一對齒輪、以及配備前蓋和后蓋的泵殼組成。傳動軸從泵的前蓋向外伸出，并通過軸密封圈加以密封。軸承上的這些支承力，則由專用的軸承襯套所吸收；由于滑動軸承具有足夠的彈性力，因而形成了面接觸、而不是線接觸的方式。由于這樣，因而還確保了泵的出色耐磨性，尤其是在低速運行時。這對齒輪分別有12個齒，從而可保持齒輪泵產生zui低限度的流量脈動和噪音。
    力士樂齒輪泵AZPF系列內部密封是通過補償力實現的，這些力與輸出壓力成正比。利用這種補償方式，就能確保實現zui優的效率。這些軸承為間隙 (也即介于輸送高壓油液的輪齒之間) 的末端提供密封功能。通過對軸承的后部輸入工作壓力，就可以控制介于輪齒與軸承之間的密封區域。這些專用密封件，構成了這一區域的邊界。對于輪齒頂部的這些徑向間隙，則通過將齒輪推向泵殼的內部作用力而實現密封。

Rexroth力士樂齒輪泵AZPF系列型號（未能羅列出來的型號請來電咨詢我們?。?

AZPF-10-004LFB20MB無泄漏齒輪泵0510225308

AZPF-10-004LHO30MB無泄漏齒輪泵0510225314

AZPF-10-004LRR20MB無泄漏齒輪泵0510215011

AZPF-10-004RFB20MB無泄漏齒輪泵0510225008

AZPF-10-004RHO30MB無泄漏齒輪泵0510225012

AZPF-10-004RNL20KB無泄漏齒輪泵0510225014

AZPF-10-004RQR20MB無泄漏齒輪泵0510225010

AZPF-10-004RRR12MB無泄漏齒輪泵0510225013

AZPF-10-004RRR20MB無泄漏齒輪泵0510325306

AZPF-10-005LCB20MB無泄漏齒輪泵0510315307

AZPF-10-005LFB20MB無泄漏齒輪泵0510325308

AZPF-10-005LHO30MB無泄漏齒輪泵0510325312

AZPF-10-005LNL20KB無泄漏齒輪泵0510325313

AZPF-10-005LRR20MB無泄漏齒輪泵0510325006

AZPF-11-005RCB20MB無泄漏齒輪泵0510325007

AZPF-10-005RFB20MB無泄漏齒輪泵0510325018

AZPF-10-005RHO01MB無泄漏齒輪泵0510325008

AZPF-10-005RHO30MB無泄漏齒輪泵0510325012

AZPF-10-005RNL20KB無泄漏齒輪泵0510325016

AZPF-10-005RQR20MB無泄漏齒輪泵0510325010

AZPF-10-005RRR12MB無泄漏齒輪泵0510325013

AZPF-10-005RRR20MB無泄漏齒輪泵0510425307

AZPF-10-008LCB20MB無泄漏齒輪泵0510415326

AZPF-10-008LFB20MB無泄漏齒輪泵0510425315

AZPF-10-008LFO30MB無泄漏齒輪泵0510425309

AZPF-10-008LHO30MB無泄漏齒輪泵0510425009

AZPF-11-008RCB20MB無泄漏齒輪泵0510415012

AZPF-10-008RFB20MB無泄漏齒輪泵0510425021

AZPF-10-008RFO30MB無泄漏齒輪泵0510425027

AZPF-10-008RHO01MB無泄漏齒輪泵0510425011
供應AZPF-10-005RQR20MB力士樂齒輪泵

AZPF-10-008RHO30MB無泄漏齒輪泵0510425019

AZPF-10-008RNL20KB無泄漏齒輪泵0510425025

AZPF-10-008RQR20MB無泄漏齒輪泵0510425015

AZPF-10-008RRR12MB無泄漏齒輪泵0510425020

AZPF-11-008RRR20MB無泄漏齒輪泵0510425029

AZPF-10-011LCB20MB無泄漏齒輪泵0510515327

AZPF-10-011LFB20MB無泄漏齒輪泵0510525323

AZPF-10-011LFO30MB無泄漏齒輪泵0510525331

AZPF-10-011LFO30PB無泄漏齒輪泵0510525322

AZPF-10-011LHO30KB無泄漏齒輪泵0510525315

AZPF-10-011LRR12MB無泄漏齒輪泵0510525009

AZPF-10-011RCB20MB無泄漏齒輪泵0510515020

AZPF-10-011RFB20MB無泄漏齒輪泵0510515011

AZPF-10-011RFN20MB無泄漏齒輪泵0510525024

AZPF-10-011RFO30MB無泄漏齒輪泵0510525039

AZPF-10-011RHO01MB無泄漏齒輪泵0510525021

AZPF-10-011RHO30MB無泄漏齒輪泵0510525025

AZPF-10-011RNL20KB無泄漏齒輪泵0510525015

AZPF-10-011RQR12MB無泄漏齒輪泵0510525032

AZPF-10-011RQR12MB無泄漏齒輪泵0510525033

AZPF-10-011RQR20MB無泄漏齒輪泵0510525014

AZPF-10-011RRR12MB無泄漏齒輪泵0510525019

AZPF-10-011RRR20MB無泄漏齒輪泵0510545003

AZPF-10-011RSG20MB無泄漏齒輪泵0510525319

AZPF-10-014LCB20MB無泄漏齒輪泵0510515328

AZPF-10-014LFB20MB無泄漏齒輪泵0510525314

AZPF-10-014LHO30MB無泄漏齒輪泵0510525325

AZPF-10-014LRR20MB無泄漏齒輪泵0510545302

AZPF-10-014LSG20MB無泄漏齒輪泵0510525018

AZPF-10-014RCB20MB無泄漏齒輪泵0510525030

AZPF-10-014RFB20MB無泄漏齒輪泵0510525034

AZPF-10-014RFO30PB無泄漏齒輪泵0510525040

AZPF-10-014RHO01MB無泄漏齒輪泵0510525028

AZPF-10-014RHO30MB無泄漏齒輪泵0510525031

AZPF-10-014RQR12MB無泄漏齒輪泵0510525041

AZPF-10-014RRR12MB無泄漏齒輪泵0510525020

AZPF-10-014RRR20MB無泄漏齒輪泵0510545002

AZPF-10-014RSG20MB無泄漏齒輪泵0510625315

AZPF-11-016LCB20MB無泄漏齒輪泵0510290166

AZPF-10-016LCP12PB無泄漏齒輪泵0510615329

AZPF-10-016LFB20MB無泄漏齒輪泵0510625327

AZPF-10-016LFO30PB無泄漏齒輪泵0510625318

AZPF-10-016LHO30KB無泄漏齒輪泵0510625329

AZPF-10-016LRR20MB無泄漏齒輪泵0510625022

AZPF-11-016RCB20MB無泄漏齒輪泵0510615015

AZPF-10-016RFB20MB無泄漏齒輪泵0510625039

AZPF-10-016RFO30PB無泄漏齒輪泵0510625047

AZPF-10-016RHO01MB無泄漏齒輪泵0510625016

AZPF-10-016RHO30MB無泄漏齒輪泵0510625053

AZPF-10-016RQR12MB無泄漏齒輪泵0510625042

AZPF-10-016RQR20MB無泄漏齒輪泵0510625020

AZPF-10-016RRR12MB無泄漏齒輪泵0510625028

AZPF-10-016RRR20MB無泄漏齒輪泵0510625031

AZPF-10-016RSG20MB無泄漏齒輪泵0510625314

AZPF-10-019LCB20MB無泄漏齒輪泵0510625316

AZPF-10-019LFB20MB無泄漏齒輪泵0510625332

AZPF-10-019LHO30KB無泄漏齒輪泵0510625368

AZPF-10-019LNL20KB無泄漏齒輪泵0510625346

AZPF-10-019LRR12MB無泄漏齒輪泵0510625013

AZPF-11-019RCB20MB無泄漏齒輪泵0510615031

AZPF-10-019RFB20MB無泄漏齒輪泵0510615009

AZPF-10-019RFN20MB無泄漏齒輪泵0510625049

AZPF-10-019RFO30PB無泄漏齒輪泵0510625052

AZPF-10-019RHO01MB無泄漏齒輪泵0510625036

AZPF-10-019RHO30MB無泄漏齒輪泵0510625032

AZPF-10-019RNL20KB無泄漏齒輪泵0510625041

AZPF-10-019RQR12MB無泄漏齒輪泵0510625043

AZPF-10-019RQR20MB無泄漏齒輪泵0510625048

AZPF-10-019RRR12MB無泄漏齒輪泵0510645003

AZPF-10-019RSG20MB無泄漏齒輪泵0510725359

AZPF-10-022LHO30MB無泄漏齒輪泵0510725396

AZPF-10-022LQR20MB無泄漏齒輪泵0510725361

AZPF-10-022LRR20MB無泄漏齒輪泵0510715013

AZPF-10-022RFB20MB無泄漏齒輪泵0510725084

AZPF-10-022RHO01MB無泄漏齒輪泵0510725031

AZPF-10-022RHO30MB無泄漏齒輪泵0510725059

AZPF-10-022RQR12MB無泄漏齒輪泵0510725060

AZPF-10-022RQR20MB無泄漏齒輪泵0510725063

AZPF-10-022RRR12MB無泄漏齒輪泵F000510106

AZPF-11-002RCN20MB無泄漏齒輪泵0510225318

AZPF-11-004LAB01MB無泄漏齒輪泵9510080203

AZPF-11-004LCB20MB無泄漏齒輪泵0510215306

AZPF-10-004RCP20MD008xx無泄漏齒輪泵0510225007

AZPF-10-016LCP20MB-S0288無泄漏齒輪泵0510615324

AZPF-10-022RCP20MD008xx無泄漏齒輪泵0510725062

AZPF-10-019RCP20MD008xx無泄漏齒輪泵0510625014

AZPF-10-019LFO30PB-S0012無泄漏齒輪泵0510625319

AZPF-10-016RCP20MB-S0288無泄漏齒輪泵0510615030

AZPF-10-016RCP20MD008xx無泄漏齒輪泵0510625015

AZPF-10-016RRR20MSxxx21無泄漏齒輪泵0510645005

AZPF-10-016RNL20KSxxx15無泄漏齒輪泵0510625021

AZPF-10-008RRR20MExxx08無泄漏齒輪泵0510525311

AZPF-10-014LCP20MB-S0288無泄漏齒輪泵0510525328

AZPF-10-005LCP20MB-S0007無泄漏齒輪泵0510325307

AZPF-10-011RCP20MD008xx無泄漏齒輪泵0510525010

AZPF-10-011LCP20MB-S0288無泄漏齒輪泵0510515314

AZPF-10-008LCP20MB-S0288無泄漏齒輪泵0510415324

AZPF-10-008LCP20MD200xx無泄漏齒輪泵0510425308

AZPF-10-008RCP20MD008xx無泄漏齒輪泵0510425010

AZPF-10-011LCP20MSxxx12-S0007無泄漏齒輪泵0510515321

AZPF-10-011LCP20MSxxx21-S0007無泄漏齒輪泵0510525312

AZPF-10-011LHO20MSxxx25-S0002無泄漏齒輪泵0510525313

AZPF-10-011RHO20KSxxx15-S0002無泄漏齒輪泵0510525011

AZPF-10-014RHO20KSxxx19-S0002無泄漏齒輪泵0510525012

AZPF-10-016LCP20MExxx09-S0007無泄漏齒輪泵0510615322

AZPF-10-016LCP20MSxxx12-S0007無泄漏齒輪泵0510615344
供應AZPF-10-005RQR20MB力士樂齒輪泵

AZPF-10-016LCP20MSxxx21-S0007無泄漏齒輪泵0510625317

AZPF-10-019RHO20KExxx19-S0002無泄漏齒輪泵0510625017

AZPF-10-022LHO20KExxx22-S0002無泄漏齒輪泵0510725331

AZPF-10-022LFB20MSxxx21-S0002無泄漏齒輪泵0510725384
