深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.
廠家：美國The Phantom Laboratory, phantomlab.

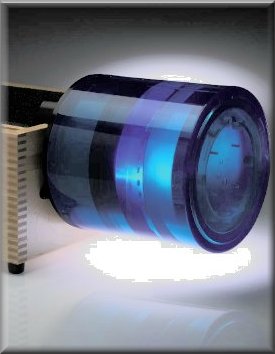

模體用來檢測CT性能，由塑料制成，Catphan500, Catphan600, Catphan5700, CTP500, CTP600, CTP700等. 另外一個是磁共振性能檢測模體，完全使用有機玻璃制成，也有兩個型號，其中的圓柱形，就是Magphan® SMR170，廠家是美國模體實驗室。

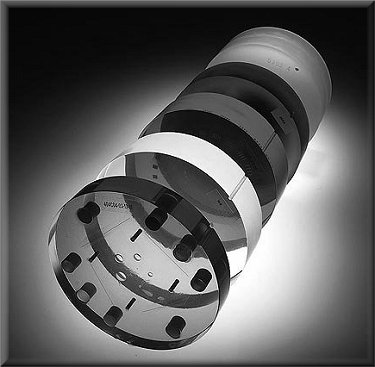

patient alignment system check low contrast sensitivity comparative subslice and supra-slice low contrast sensitivity spatial uniformity scan incrementation noise (precision) of CT systems circular symmetry sensitometry (linearity) pixel (matrix) size point spread function and modulation transfer function (MTF) for the x, y, and z axes Catphan® 700(Stock CTP700) - Complete Catphan® including housing and case, equipped with the following test modules: CTP682 - Geometry sensitometry and point source module CTP714 - 30 line pair high resolution module CTP515 - Subslice and supra-slice low contrast CTP721 - Wave insert CTP723 - Bead blocks CTP712 - Uniformity section

Catphan 600®(Stock CTP600) - Complete Catphan® including housing and case, equipped with the following test modules: CTP404 - Slice width, sensitometry and pixel size CTP591 - Bead Geometry module CTP528 - 21 line pair high reslution and point source CTP515 - Subslice and supra-slice low contrast CTP486 - Solid image uniformity module Catphan500(Stock CTP500) - Complete Catphan including housing and case, equipped with the following test modules: CTP401 - Slice width, sensitometry and pixel size CTP528 - 21 line pair high resolution and point source CTP515 - Subslice and supra-slice low contrast CTP486 - Solid image uniformity module Catphan® 412(Stock CTP412) - Complete Catphan including housing and case, equipped with the following test modules: CTP401 - Slice width, sensitometry and pixel size

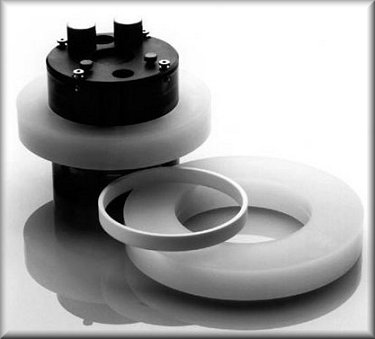

CTP445 - MTF module with bead point source CTP446 - 20 line pair high resolution CTP263 - Low contrast CTP486 - Solid image uniformity module Catphan® 424(Stock CTP424) - Complete Catphan including housing and case, equipped with the following test modules: CTP401 - Slice width, sensitometry and pixel size CTP445 - MTF module with bead point source CTP446 - 20 line pair high resolution CTP263 - Low contrast CTP422 - Liquid bath Catphan® 440(Stock CTP440) - Complete Catphan including housing and case, equipped with the following test modules: CTP401 - Slice width, sensitometry and pixel size CTP592 - Low and high contrast resolution module

深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab. 產品編號 Description CTP700 Complete Catphan® 700 including housing, case, and test modules Includes the following: CTP682-Geometry sensitomety and point source module, CTP714-30 line pair high resolution module, CTP515- Subslice and supra-slice low contrast, CTP721 Wave insert, CTP723-Bead blocks, CTP712 Uniformity section CTP600 Complete Catphan® 600 including housing, case, and test modules Includes the following: CTP404-Slice width, sensitometry and pixel size, CTP591-Bead geometry module, CTP528-21 line pair high resolution and point source, CTP515-Subslice and supra-slice low contrast, CTP486-Solid image uniformity module CTP500 Complete Catphan500 including housing, case, and test modules. Includes the following:CTP401 Slice width, sensitometry and pixel size, CTP528-21 line pair high resolution and point source, CTP515-Subslice and supra-slice low contrast, CTP486-Solid image uniformity module CTP412 Complete Catphan® 412 including housing, case, and test modules. Includes the following:CTP401-Slice width, sensitometry and pixel size, CTP446-20 line pair high resolution, CTP263-Low Contrast, CTP486-Solid image uniformity module CTP424 Complete Catphan® 424 including housing, case, and test modules. Includes the following:Slice width, sensitometry and pixel size, CTP445-MTF module with bead point source, CTP446-20 line pair high resolution, CTP263-Low contrast, CTP422-Liquid bath. CTP440 Complete Catphan® 440 including housing, case, and test modules. Includes the following:CTP401-Slice width, sensitometry and pixel size, CTP592-Low and high contrast resolution module CTP401 Slice width, sensitometry and pixel size module CTP404 Slice width, sensitometry and pixel size module CTP445 MTF Module with bead point source CTP446 20 line pair high resolution module CTP528 21 line pair high resolution and point source module CTP422 Liquid Bath CTP486 Solid image uniformity module CTP263 Low Contrast Module CTP515 Sub-slice and supra-slice low contrast module CTP592 Low and high contrast resolution module CTP591 40mm bead geometry module CTP501 16cm housing and mount with modules CTP591 & CTP486-3 CTP295 Liquid bath scan alignments inserts CTP291 Liquid bath acrylic LSF inserts CTP299 Teflon annulus CTP539 30cm OD uniformity material body annulus CTP540 35cm OD uniformity material body annulus CTP650 38cm OD uniformity material body annulus CTP579 25-35cm oval OD uniformity material body annulus CTP651 30-38cm oval OD uniformity material body annulus CTP599 45-55cm oval OD uniformity material body annulus CTP326 32cm OD acrylic body annulus CTP541 16cm OD housing and mount CTP536 35cm center off-center housing CTP553 32cm Acrylic Dose Phantom CTP554 16cm Acrylic Dose Phantom CTP558 Dose Phantom Set includes 16cm & 32cm

深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.
廠家：美國The Phantom Laboratory, phantomlab.

AutoQALite Software for use with the CatPhan CT Phantoms.

An updated Windows program to the original PC/AutoQA for CT. This update provides expanded image processing capacity for up to 96 images in a data set with a comprehensive trend analysis feature. PROCESSING FEATURES CT AutoQA Lite? can be configured with various vendor phantoms including ACR and all Catphan® models. CT AutoQA Lite? is DICOM3.0 compatible, a DICOM Storage Provider (SCP) Application license is provided. CT AutoQA Lite? provides the same analysis function as the original PC/AutoQA (DOS) version. Pixel Size – test verifies the expected pixel size based on the display field of view and the reconstruction matrix size from the measured set of four calibration pins positioned at a known physical location as specified in the Catphan® section CTP401 and CTP404.

深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab.

Verification Phantom ID: 600 Series (Phantom Lab) Orientation 1 Phantom Center:257,254 CT#base:106 +/- 5.1 Pixel Size Expected(mm) X-Axis(mm) Y-Axis(mm) 0.49 0.49 0.49 0.49 0.49 Phantom Rotation: -0.5 degrees Phantom Center is: 0.49mm Right of center 0.98mm Above of center CT# Linearity Contrast Scale: 0.000189 Material Teflon Air LDPE Delrin Acrylic PMP CT# 891 -1000 -92 297 130.1 -185 Slice Thickness Expected(mm) X-Axis(mm) Y-Axis(mm) 5.00 4.89 4.91 4.88 4.95 Avg Slice Width: 4.91 mm Table Position Offset: -1.39 Vertical Angle: 0.2 degrees Horizontal Angle: 0.1 degrees

CT Linearity (Sensitometry) – Mean CT values are calculated for each reference material in the phantom test section. The measured CT numbers for test materials are fit to the linear attenuation coefficients using a linear least squares for energies from 40 to 100 keV. The variance representing the lowest variance was designated as the scanner’s effective energy. The linear attenuation coefficients for this effective energy are used to determine the contrast scale from the calculated linearity slope. Slice Thickness – is determined from the average full-width at half-maximum (FWHM) of the CT number profile for each wire ramp. The expected slice width is compared with all four measured ramps values. A trigonometric conversion is calculated based on the known ramp angle to yield the slice width. This test provides information on the position of the phantom and the vertical and horizontal tilt values. A rotation of the phantomaboutan axis perpendicular to the ramps is also computed. Since there are two pairs of ramps orientated along the orthogonal directions, phantom rotationsaboutboth the vertical and horizontal axes can be estimated. Localizer and Table Incrementation Accuracy – can be evaluated from the slice width section when the ramps are paired at opposing angles. The slice width test outputs a parameter called Table Position Offset, which is an offset in

深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab.

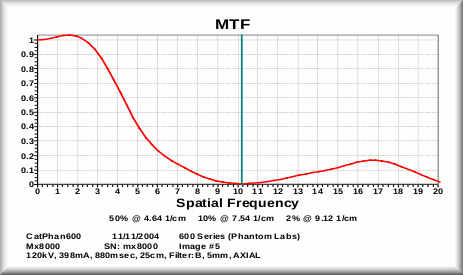

Spatial Resolution (MTF) Critical Frequencies (cy/cm) 50% 4.64 10% 7.54 2% 9.12

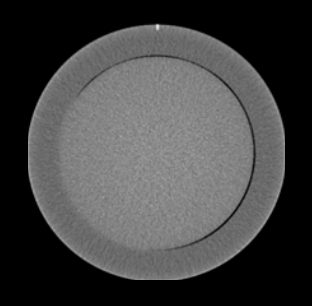

the z-axis relative to the center of the opposing wire (or test section). Verification of the scanner table incrementation accuracy can be checked by incrementing the table by 30 mm and then returning the table to the starting position and scanning the slice width module. The reported table position offset values should be the same. Spatial Resolution (MTF) – The modulation transfer function (MTF) is calculated from the discrete Fourier transform of the average vertical and horizontal LSF’s of the point spread function from the bead or wire test section. The program reports the 50%, 10% and 2% MTF cutoff values. Noise and Mean CT Number – is calculated from several regions of interest (ROI) positioned over a water/uniformity phantom section. The number, size and location of these ROI’s are variable, but typically five are defined: one at the phantom center and the other four along the axes at the same radius covering a 15 x 15 pixel area. Uniformity – Vertical and horizontal profiles 10 pixels wide are generated and averaged through the phantom’s center. The fractional uniformity of the profile is calculated as the percentage of the pixels within an acceptable range determined by + 2 times the central noise or + 10H, whichever is smaller. Contrast Detail (Low Contrast Resolution) – Theoretical Contrast-Detail data is calculated based on the measured 深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab.

Noise X(mm) Y(mm) Mean(H) SD(H) 0.0 50.0 5.48 2.50 50.0 0.0 4.86 2.51 0.0 -50.0 2.44 1.99 -50.0 0.00 3.46 2.22 0.00 0.0 5.16 2.62 Uniformity X-Axis Y-Axis Uniformity Index: 0.92 0.95 Standard Deviation (H): 4.2 Low Contrast Contrast(%) 0.6 0.35 0.25 0.20 0.16 0.14 Detail(mm) 3.0 5.0 7.0 9.0 11.0 13.0

noise of the water/uniformity test section. Note: low contrast modules (CTP263 and CTP515) are not used in this measurement. This represents a conservative estimate of the minimum contrast level required such that a cylindrical object of a given diameter should be detected. NEW FEATURES The Catphan 600 bead module consists of 2 different sets of angled ramps containing small tungsten beads in a 40mm thick section. The first set consists of 2 pairs in opposing directions, one pair oriented horizontally and the other pair oriented vertically. This uses 0.34mm diameter beads with an “effective” separation of 1.0mm. The second set contains only a single pair of smaller beads (0.17mm diameter) oriented vertically with an “effective” separation of only 0.25mm. This type of test object allows the user to make a visual estimate of the actual slice thickness by counting the individual beads in the image and multiplying by the known separation. The beads at both ends of the set that are visualized in the image may be a much less intensity than the more centrally located beads in which case they might be 深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab.

Verification Phantom ID: 600 Series (Phantom lab) Orientation 1 Phantom Center: 257,254 CT# base: 106 +/- 5.1 Slice Thickness (Bead Ramp) Expected (mm) Measured (mm) 1.00 0.75 1.17 Average Slice Width: 0.96mm Table Position Offset: 1.94mm Vertical Angle: 1.6 degrees

深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab. only counted as ?. The AutoQA Lite program basically performs this visual assessment. However, since the data is processed quantitatively, it is possible to use some weighting scheme for the terminal beads to provide a more objective weighting factor. In addition, since the ramps are always used as opposing sets, it is also possible to perform additional calculations that would affect the quality of this test and the reliability and accuracy of the results. This includes: the axial offset of the center of this module with respect to the slice location and angular tilt of the phantom vertically and horizontally. Lastly, this module contains an off-centered wire as an impulse response source through the entire 40mm module thickness allowing for MTF measurements for each slice. RESULT FEATURES CT AutoQA Lite? provides two database options for storage of test results. ‘Monitor Database’, is the first database option designated for constancy/monitoring and islinked to the Trend Analysis function. The ‘Service Database’ is the second data base option and is designed for more extensive service and/or acceptance testing data sets. If neither of 深圳灣邊貿易CT模體Catphan500 Phantom價格優惠.  廠家：美國The Phantom Laboratory, phantomlab.

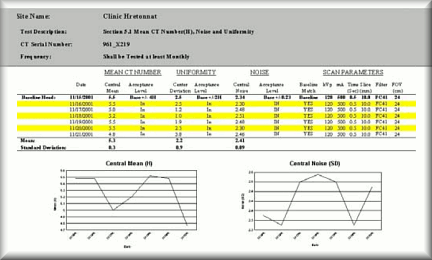

these two options is appropriate, the user can select the option to not store results but only view results. The basic display of results is provided as a scrolling window, with a print ‘Test Results’ function button. The Trend Analysis feature is available for Noise/Mean CT number, slice width, spatial resolution (MTF), and CT linearity measurements. The Trend Analysis function islinked to the monitor database files and follows guidelines for CT constancy testing established by the International Electrotechnical Commission (IEC) 1223-2-6 (Constancy tests - X-ray equipment for computed tomography, First Edition 1994-04). MINIMUM SYSTEM REQUIREMENTS Minimum Requirements for Windows XP, CD drive
